ROS 2 Agent

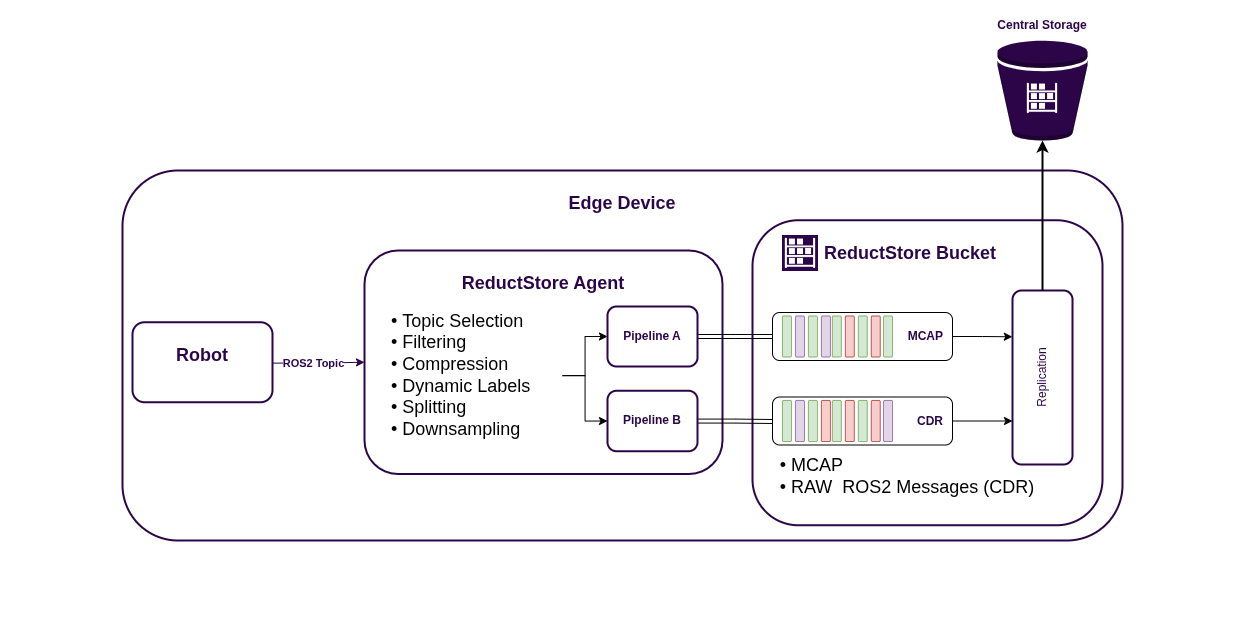

The ros2-reduct-agent is a ROS 2 node that records selected topics as MCAP files and stores them in ReductStore.

Key features:

• Continuous recording of ROS 2 topics as MCAP files into ReductStore
• File rotation by duration or size to avoid large, hard-to-use files
• Topic grouping into separate pipelines, each writing its own file sequence
• Per-pipeline topic selection, compression, and chunking

System Requirements

Component	Version
ROS 2	Jazzy Jalisco
OS	Ubuntu 24.04 (Noble)
Python	≥ 3.12

Start a local ReductStore instance:

docker run -p 8383:8383 -v ${PWD}/data:/data reduct/store:latest

For more details on running ReductStore, see the Getting Started guide.

Installation

The ReductStore ROS 2 Agent can be installed using one of the following methods:

• Snap package (recommended) – production deployments and Ubuntu Core
• Build from source – development and debugging

Install via Snap (Recommended)

This method is recommended for production deployments and Ubuntu Core systems.

# Install snapcraft if not already installed
sudo snap install snapcraft --classic

# Build the snap
snapcraft pack

# Install locally (for testing)
sudo snap install --dangerous reductstore-agent_*.snap

Or install directly from the store (edge channel for now):

sudo snap install reductstore-agent --edge

Build from Source

This installation method is intended for contributors and advanced users who want to modify or debug the agent. It is not required for normal operation.

## Clone into your ROS 2 workspace
mkdir -p ~/ros2_ws/src
cd ~/ros2_ws/src
git clone https://github.com/reductstore/ros2-reduct-agent.git
cd ..

## Install dependencies and build
rosdep install --from-paths src --ignore-src -r -y
colcon build --packages-select ros2_reduct_agent

## Run with your config
source install/local_setup.bash
ros2 run ros2_reduct_agent recorder --ros-args --params-file ./config.yaml

Configuration Reference

The agent is configured using a standard ROS 2 YAML file with two sections: storage and pipelines. For example:

/**/*:
  ros__parameters:
    storage: # local ReductStore instance
      url: "http://localhost:8383"
      api_token: "access_token"
      bucket: "ros_data"
      quota_type: "FIFO"
      quota_size: "200GB"
    pipelines:
      telemetry:
        filename_mode: "timestamp"
        include_topics:
          - "/camera/.*"
        exclude_topics:
          - "/camera/ignore"
        static_labels:
          source: telemetry
          robot: alpha
        split:
          max_duration_s: 3600
          max_size_bytes: 10000
        downsample:
          downsampling_mode: stride
          stride_n: 5

Configuration overview

The agent requires the following configuration sections to start:

• storage – specifies the ReductStore instance where data is written
• Pipeline configuration – defines what data is recorded, provided either:
  • locally via pipelines, or
  • remotely via a configuration reference in remote

If any required configuration is missing, the agent will fail to start.

Storage Section

The storage section configures the connection to ReductStore.

Parameter	Type	Description
url	string	ReductStore endpoint (e.g., http://localhost:8383) (required)
bucket	string	Target bucket (auto-created if missing) (required)
api_token	string	API token with write permission

Remote Config Section

The remote section specifies where the agent should fetch a pipeline configuration YAML file from in a ReductStore instance.
It does not define pipelines itself.

Parameter	Type	Description
remote.url	string	Base URL of the ReductStore instance where the pipeline configuration is stored (required)
remote.api_token	string	API token used to authenticate when accessing the remote configuration (required)
remote.bucket	string	Bucket containing the pipeline configuration YAML file (required)
remote.entry	string	Entry name under which the pipeline configuration YAML file is stored (required)
remote.pull_frequency_s	int	Poll interval (in seconds) for reloading the remote configuration (default: 60)

Notes

• Remote configuration is enabled only if all required parameters are provided.
• The referenced ReductStore entry must contain a YAML file.
• The YAML content must follow the same structure as the local pipelines configuration.

Remote configuration backup

When remote configuration is enabled, the agent automatically stores a local backup of the fetched pipeline configuration as backup.yaml.

This backup is used as a fallback in the following cases:

• The agent restarts and the remote configuration is temporarily unavailable
• The remote configuration cannot be fetched at startup
• Periodic refresh fails while remote.pull_frequency_s is enabled

If a valid backup.yaml is available, the agent will load the pipeline configuration from the backup instead of failing immediately.

Pipeline Section

Each key under pipelines defines a separate recording pipeline, which results in a distinct entry in ReductStore. Each pipeline can be configured independently with its own topic filters, compression settings, and file-splitting behavior.

Parameter	Type	Default	Description
include_topics	string[]	—	List of ROS 2 topic names or regex patterns to record (required)
exclude_topics	string[]	—	List of ROS 2 topic names or regex patterns to exclude
filename_mode	enum	timestamp	File naming strategy: timestamp or incremental
compression	enum	zstd	Compression algorithm: none, lz4, or zstd
output_format	enum	mcap	Output format: mcap or cdr
chunk_size_bytes	int	1MB	Size of each MCAP chunk (1KB–10MB)
enable_crcs	bool	true	Append CRC checks to each chunk
spool_max_size_bytes	int	10MB	Maximum in-memory buffer before flushing (1KB–1GB)
split.max_duration_s	int	—	Split file after N seconds (1–3600) (required)
split.max_size_bytes	int	—	Split file when size exceeds this limit (1KB–1GB)
downsample_mode	enum	none	Message downsampling mode: none, stride, max_rate
downsample.stride_n	int	—	Record every Nth message. Must be n=>2 (required if stride)
downsample.max_rate_hz	float	—	Maximum message frequency in Hz. Must be >0.0 (required if max_rate)
static_labels	map	—	Static key–value labels applied to all records
labels.mode	enum	last	Dynamic label aggregation mode: last, first, or max
